roboligo::Linker Class Reference

Manages the configuration and state of interface connections. More...

#include <Linker.hpp>

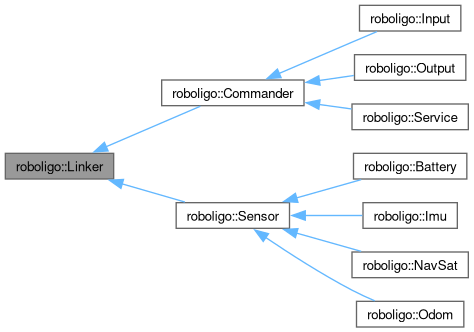

Inheritance diagram for roboligo::Linker:

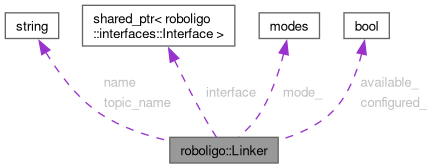

Collaboration diagram for roboligo::Linker:

Public Member Functions
interfaces::modes	get_mode ()
	Gets the current mode of the linker.
std::string	get_name ()
	Gets the linker name.
std::string	get_topic ()
	Gets the topic name.
bool	is_available (void)
	Checks if the linker is available.
bool	is_configured (void)
	Checks if the linker is configured.
	Linker ()
	Default constructor.
void	set_available (bool new_state)
	Sets the availability state.
void	set_configured (bool new_state)
	Sets the configuration state.
void	set_interface (std::string name_, std::string topic_name_)
	Configures the interface with name and topic.
void	set_mode (interfaces::modes new_mode)
	Sets the linker mode.
void	set_name (std::string new_name)
	Sets the linker name.
void	set_service (std::string new_name)
	Sets the service name.
void	set_topic (std::string new_name)
	Sets the topic name.
virtual	~Linker ()=default
	Virtual destructor.

Public Attributes
std::shared_ptr< interfaces::Interface >	interface
	Shared pointer to the interface object.
std::string	name {"linker"}
	Linker identifier name.
std::string	topic_name {"/interface"}
	Associated topic name.

Protected Attributes
bool	available_ {false}
	Availability flag.
bool	configured_ {false}
	Configuration state flag.
interfaces::modes	mode_
	Current operating mode.

Detailed Description

Manages the configuration and state of interface connections.

Handles linking between components through topics and services, including mode management, availability, and configuration status.

Constructor & Destructor Documentation

Linker()

roboligo::Linker::Linker ( )

inline

Default constructor.

~Linker()

virtual roboligo::Linker::~Linker ( )

virtualdefault

Virtual destructor.

Member Function Documentation

get_mode()

interfaces::modes roboligo::Linker::get_mode

(

)

Gets the current mode of the linker.

Returns

Current interface mode

get_name()

std::string roboligo::Linker::get_name

(

)

Gets the linker name.

Returns

Name string

get_topic()

std::string roboligo::Linker::get_topic

(

)

Gets the topic name.

Returns

Topic name string

is_available()

bool roboligo::Linker::is_available

(

void

)

Checks if the linker is available.

Returns

True if available, false otherwise

is_configured()

bool roboligo::Linker::is_configured

(

void

)

Checks if the linker is configured.

Returns

True if configured, false otherwise

set_available()

void roboligo::Linker::set_available

(

bool

new_state

)

Sets the availability state.

Parameters

new_state

Availability state

set_configured()

void roboligo::Linker::set_configured

(

bool

new_state

)

Sets the configuration state.

Parameters

new_state

Configuration state

set_interface()

void roboligo::Linker::set_interface	(	std::string	name_,
		std::string	topic_name_ )

Configures the interface with name and topic.

Parameters

name_	Interface name
topic_name_	Topic name

set_mode()

void roboligo::Linker::set_mode

(

interfaces::modes

new_mode

)

Sets the linker mode.

Parameters

new_mode

The mode to set

set_name()

void roboligo::Linker::set_name

(

std::string

new_name

)

Sets the linker name.

Parameters

new_name

Name to assign

set_service()

void roboligo::Linker::set_service

(

std::string

new_name

)

Sets the service name.

Parameters

new_name

Service name to assign

set_topic()

void roboligo::Linker::set_topic

(

std::string

new_name

)

Sets the topic name.

Parameters

new_name

Topic name to assign

Member Data Documentation

available_

bool roboligo::Linker::available_ {false}

protected

Availability flag.

configured_

bool roboligo::Linker::configured_ {false}

protected

Configuration state flag.

interface

std::shared_ptr<interfaces::Interface> roboligo::Linker::interface

Shared pointer to the interface object.

mode_

interfaces::modes roboligo::Linker::mode_

protected

Current operating mode.

name

std::string roboligo::Linker::name {"linker"}

Linker identifier name.

topic_name

std::string roboligo::Linker::topic_name {"/interface"}

Associated topic name.

---

The documentation for this class was generated from the following files:

• roboligo_common/include/roboligo_common/types/Linker.hpp
• roboligo_common/src/roboligo_common/types/Linker.cpp
